Binoculars 8x30 Baigish BPCs5 production of KOMZ, Russia

8880000097451

OVERVIEW

The main purpose of binoculars 8x30 Baigish BPCs5 production of KOMZ, Russia

Prismatic binoculars of the domestic production BPCs5 8x30 with angular mesh has a wide field of view (angle is 8.6°) and is suitable for observing different objects during trips, trekking and travelling, fishing, or hunting, can be used for General observation or viewing of spectacular outdoor events.

The main characteristics of binoculars 8x30 Baigish BPCs5 production of KOMZ, Russia

• Case of aluminium alloys, of a rough surface of artificial leather (color – black), temperature range from -40°C to +50°C
• Magnification 8x, diameter of lens 30 mm, exit pupil distance 12 mm, resolution limit in the field of view of 6 lines/mm, angular field of view of 8.6°
• Built into the right eyepiece angle measuring grid
• Porro prism, multilayer antireflection lens coating
• Central focusing, adjustable interpupillary distance
• Comes complete with neck strap, hard case with soft leatherette protective covers of eyepieces

Design features of binocular 8x30 Baigish BPCs5 production of KOMZ, Russia

Base case material BPCs5 8x30 – aluminum alloys, which are characterized by low specific density, good thermal conductivity and wear resistance, corrosion resistance. To ensure a comfortable grip and extra protection from mechanical damage, dust and moisture binoculars Baigish has a coating of faux leather (black).Operates in a wide temperature range from -40°C to +50°C.

Classic design due to the use of optical circuits on the basis of the porro prisms. Prisms provide a normal stereoscopic image with good rendering of shadows and contrast. Multilayer antireflection coating is applied to lens surfaces to improve light transmission, provides good color image and improves the brightness and contrast of the image.

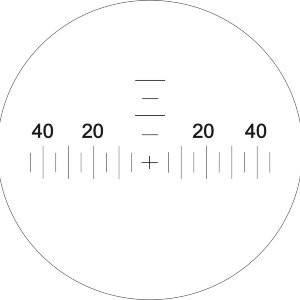

Azimuth mesh of the Russian KOMZ binoculars can roughly estimate the distance to objects with exact dimensions. Originally, these grids were intended to solve military problems. In Soviet times all Russian binoculars used the same type of angular grid. They are located in the right eyepiece and is made by fine engraving on one of the inner glass surfaces.

A small division of the grid corresponds to 18 years, large - 36 angular minutes. For mental calculation it is convenient to remember the following ratio: large division (36’) corresponds to a linear size in 1/100 or 10/1000 of course, so opposite to the second large division is the figure 20, opposite the fourth 40. These numbers, called the passport "units", are actually thousandths distance.

The user manual for binoculars KOMZ prescribed calculation formula:

distance = object size * 1000/mils distance

Hunters operating confidently "Miami" popular hunting reticle Mil-Dot, easy to use and the grid, as "mil" is the same as the thousandth part of the distance. For other users I recommend to train. For example: the average body length of an adult boar a little more than 1.5 m, if it "fit" 1.5 large fission – to him of the order of 100 m if one is approximately 150 m if in one small division of about 300 m.

To configure the Kazan binoculars 8x30 BPCs5 used adjustment of interpupillary distance and guidance of field using the drum Central focus.Experts of our online store will provide additional information about the main characteristics of binoculars produced by Kazan optical and mechanical plant. Post your question on the website or call us at (495) 989-10-56.

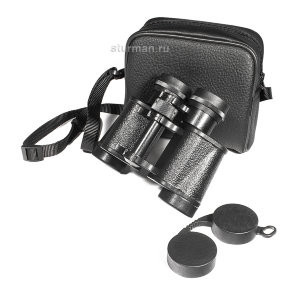

Comes complete with neck strap, hard case with soft leatherette protective covers of eyepieces.

Technical characteristics of the binoculars 8x30 Baigish BPCs5 production of KOMZ, Russia
