Kazan Optics
Binoculars rangefinder Sturman 10x42 LRF

8880000097291

OVERVIEW

The main purpose of the binoculars-rangefinder Sturman 10x42 LRF

Sturman 10x42 LRF - unique binoculars with integrated laser rangefinder and excellent optical characteristics. The range of the measured distance: the maximum for reflective purposes - about 800 m to the tree - approximately 600 m to the boar - about 400 m. the measurement Error is ± 1...5 m (depending on the distance. At a short distance — meter, at close to maximum up to 5 m)

The optical design of the binoculars is made on the basis of the Roof-prisms, 10x magnification, high-aperture lenses with a diameter of 42 mm. Sturman 10x42 LRF provides good conditions for obtaining high contrast images of distant objects even in extremely low light (twilight). The device is rugged and can be operated in a wide temperature range (- 10 ... + 40) °C. the Binocular rangefinder is the perfect purchase for lovers of hunting, climbers, engineers, building trades, etc.

Key features Sturman 10x42 LRF

• Magnification of 10x binoculars, the diameter of the lenses 42 mm
• The optical scheme with the use of Roof-prism
• Optics with a multilayered enlightenment
• Individual focus eyepieces
• Diopter eyepiece adjustment ± 8 diopters.
• Slide out turnable eyecups rubber
• Exit pupil diameter - 4.2 mm.
• Eye relief - 19 mm.
• Field of view at 1000 m 87 m.
• Waterproof performance, aluminum alloy housing
• Distance measurement up to 800 m
• The measurement error of 1m
• Laser 905 nm (invisible), power 75mvt.
• Display of measured distance in meters and yards
• Scan mode

To learn all the technical characteristics and design features of the binoculars-rangefinder Sturman 10x42 LRF you have prepared the managers of our online store. To do this, you should either call by phone (495) 989-10-56 or leave your question on the website in a special form.

Design features of the binoculars-rangefinder Sturman 10x42 LRF

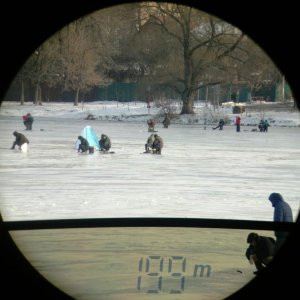

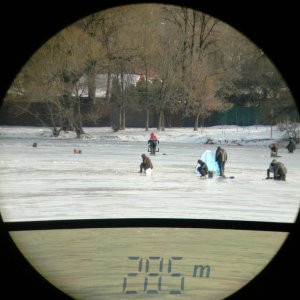

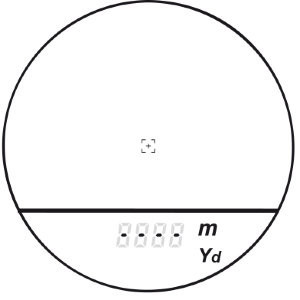

The display of the rangefinder in the binoculars Sturman 10x42 LRF is located in the right optical channel occupies the lower segment of the field of view, and causes minimal darkening optics. The reticle is applied directly to the optics, is located in the center of the field of view remains visible when switched off the meter. Efficiency measurement of the rangefinder is directly connected on the reflectivity of the objects. The laser rangefinder operates in the invisible range of electromagnetic radiation at the frequency of 905 nm. The equivalent laser power is 75mw is that is safe for human vision.

During scan mode, the meter continuously measures the distance to objects, it is useful to determine distances to multiple targets or small objects. Prolonged operation of the range finder (30 sec.) not recommended! As part of the power of the laser rangefinder uses a CR2 lithium battery which is not included in the package. It should also be noted that there is an energy-saving mode meter (auto power off after 30 seconds), which most efficiently uses the resource of the battery. Measuring values are displayed within 15 seconds. Time to measure the distance to objects up to 900 m is about 1/2 of a second, then 900 to 1...2 seconds. The maximum measured during the tests the distance of about 2000m.

The optical scheme based on prism Roof (RUF) allows to minimize the size of the binoculars, and the use of BaK4 glass to reduce light loss when passing through the system by 15%. All working surfaces of the optics is provided with a multilayered clarifying covering (H4, MgF2, TiO2, SiO2) which also reduces losses.

The binoculars-rangefinder Sturman 10x42 LRF is made in durable aluminum alloy casing and protected from atmospheric precipitation. In the case of the injected nitrogen to prevent condensation at sudden temperature drop. Sealing requirements of the standard IPX4. Polymer (also called a rubber) cover of the case protects the device from slipping out of wet hands. Perfect to set the optical parameters of binoculars you can use the diopter adjustment of each eyepiece (within +\-8 diopters!) and adjustment of interpupillary distance in the range of 59-73 mm. Ocular point made at a distance of 19 mm and allows monitoring without holding the binoculars close to the eyes. Turn-and-slide eyecups allow you to adjust for a comfortable eye position relative to the eyepieces. These design features are suitable for people wearing glasses. When observing with glasses the eyecups don't need to nominate or you can nominate not completely, to a convenient height, so that the field of view is maximized.

Package includes:

• The binoculars-rangefinder Sturman 10x42 LRF
• Protective covers of eyepieces and lenses (linked)

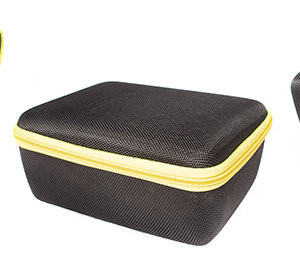

• Case
• Battery-CR2

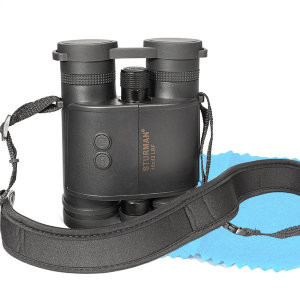

• Neoprene carrying strap of the binoculars
• Napkin for cleaning of optics
• The manual
• Warranty card

Technical characteristics of the binoculars-rangefinder Sturman 10x42 LRF
